OFDM, COFDM: Link-11, Tadil-A, Alligator

Link-11, Tadil-A, Alligator

MIL-STD 188-203-1A, Sh-110, Br-75, Ch-14+1+Pilot, pi/4 DQPSK, k = 7/15 = 0.466(6)

An example of the signal is here

Author: SergUA6

Band Width ~2400 Hz

Low Range ~500 Hz, shift is possible, recieved in SSB

Baud Rate 75 Hz in channel

n-Ary (PSK/MPSK) pi/4 DQPSK in he channel

Count of Carriers 14 frequency manipulation in the block + 1 channel + 1 pilot-tone

Step between carriers 110 Hz in the block, 550 among the block and one morePilot tone(s) 1 pilot tone ~550 Hz, shift is possible, recieved in SSB

RX mode SSB

Sonograms:

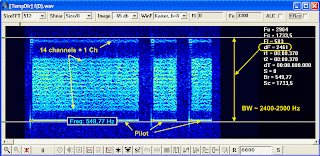

pic.1 Generall view

Diagrams:

pic.2 Graphical spectrum

Pictures:

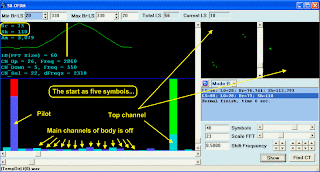

pic.3 Structure of the short start and generall parameteres of the signal

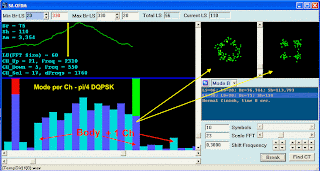

pic.4 Constellation in the channel

Link-11, Tadil-A, Alligator - is not rare signal on the air. this signal is characteristic enough for ear. It can be easily identified, because similar stuff is hardly can be found. There are two sorts of such signal, with rather long burst as in the example and with the short one. Both sorts of this signal has identical parametres, except lengh, for LINK-11 short, it does not exceed 300 msec, and usually an order 80-100 msec. Technical speed makes 15*75*2 = 2250 bps.
