Super DARN- is the interesting signal from UDXF discussion.

After some discussions, it became known, that the mysterious signal, about which we were spoken about in previous post is Super DARN (Finland).
Here is some details about this signal:

Super DARN
Author: SergUA6
Band Width ~5900-6000 Hz
Low Range hopping
RX mode source IF record

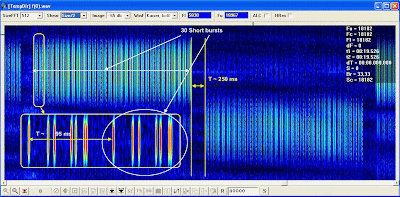

Sonograms:

pic.1 Generall view
pic.2 Detalization
pic.3 Detalization

Super DARN - there is developed enough international network for studying of an upper atmosphere and an ionosphere (Super Dual Auroral Radar Network) regions. The signal of one of radar of this network is represented in this case. The signal is curious enough, as possesses rather narrow spectrum of radiation, that is not characteristic for various probing systems. As a rule, spectrum's width of such systems, is located 20-80 kHz and higher limits. In generall, the measured parametres have relative/conditional character as can vary depending on tasks.

Many thanks to Leif Dehio for help with identification of the signal.
