Digital Scrambler Daxon D600 PSK-4.

Scrambler Daxon, D600 PSK-4.


Author: SergUA6
Band Width 3100 Hz
Low Range 300 Hz
Baud Rate 2400 Hz
n-Ary (PSK/MPSK) 4
Carrier frequency 1800 Hz
ACF 45 ms
RX mode NFM

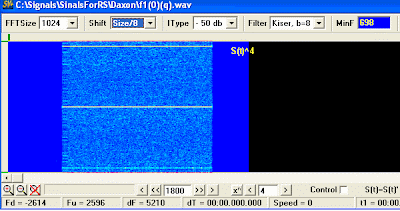

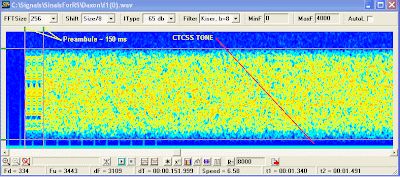

Sonograms:
pic.1

pic.2

pic.3

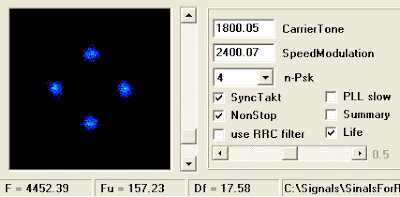

Diagrams
pic.1
Pictures
pic.1
Scrambler Daxon D600, uses a principle of conversion of speech into digital stream. After this conversion, this stream is transferred (also probably coded) to the consumer in the form of binary information. Modulation PSK-4 is used, with speed of manipulation 2400 it provides bit speed in 4800 bps.
