FSK: Russian native Airforce "Chayka" - telecode "Chayka"

Russian Airforce "Chayka" - telecode "Chayka"
Command/short message system, crypto, FSK-2.

Author: SergUA6
Band Width ~ 600 Hz
Low Range ~ 500 Hz, shift is possible, recieveing in SSB
Baud Rate 75, 150, 300, 1200 Hz
Count of Carriers 2 well visible frequency of manipulation on speed in 75Hz, but on 150-300Hz it will be problematic
Step between carriers 500 Hz
RX mode SSB

Sonograms:

pic.1 General view


pic.2 Speed of manipulation


pic.3 The repeated fragment


Diagrams:

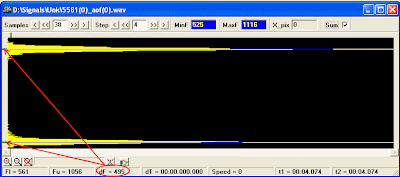

pic.1 The exact frequency spacing



Russian Airforce "Chayka" - One of native Russian systems (equipment "Chayka") of interactions of military air forces and land stations.
It is old enough system, is probably still used today, because the transmission is encrypted and it is hard enought to identify it with high level of reliability.
